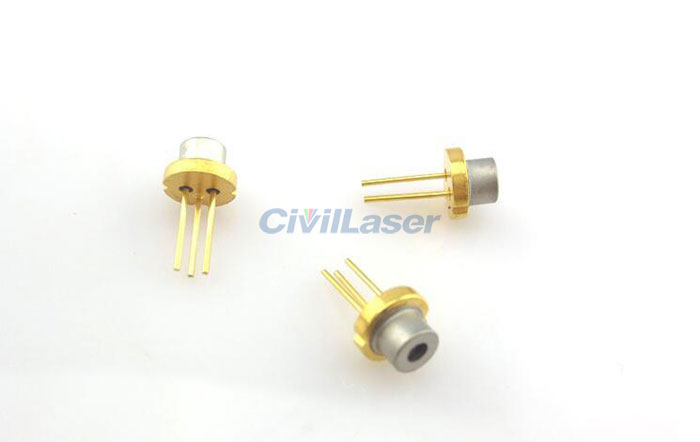

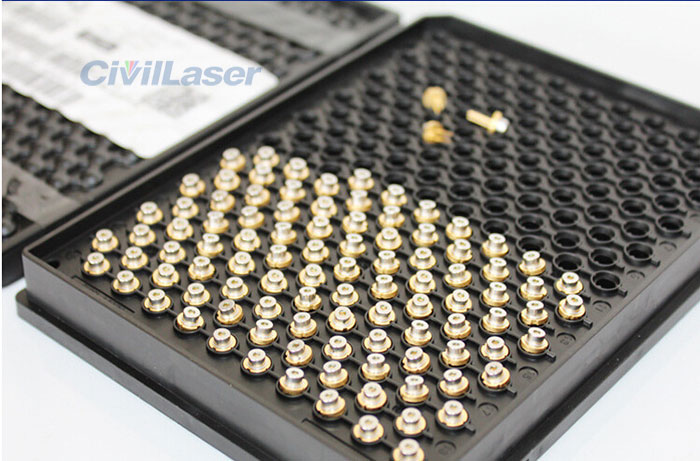

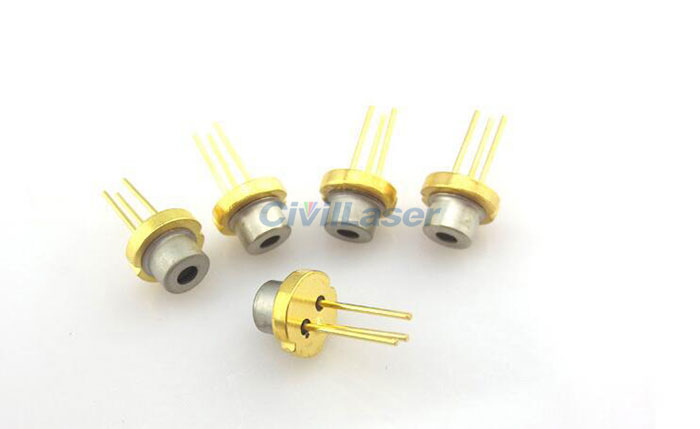

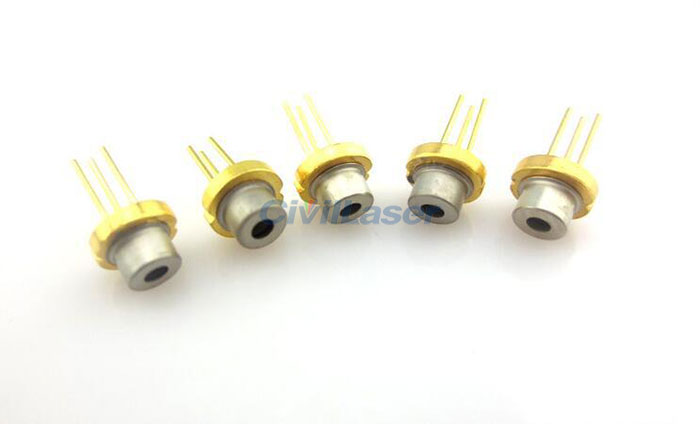

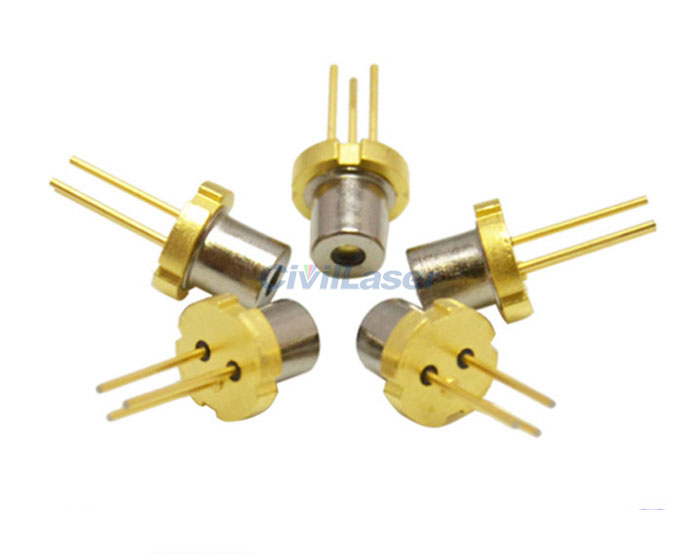

405nm 500mW Hitachi HL40023MG TO18-5.6mm Blue Violet 레이저 다이오드
[특징]
Optical 출력 파워:Po=400mW(CW)
Violet lasing : 398-410nm
Low operating current: lop=390mA Typ.
Low operating voltage: vop=5.5V max.
Small package :Φ5.6mm
Multi transverse mode oscillation
[명세서]
출력 파장:405nm
출력 파워:500mw
LD Reverse Voltage (Tc=25℃): 2V
보관 온도:-40~85℃
작동 온도: 0~30℃

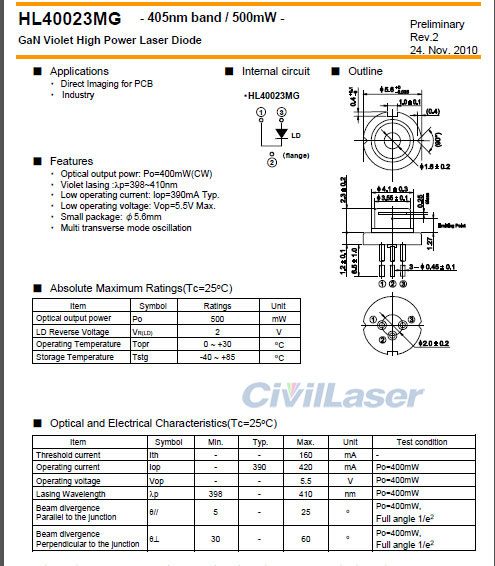

Initial Electrical/ Optical Characteristics(Tc=25℃):
Optical Output Power 500mW
Dominant Wavelength 398nm-410nm
Threshold Current <160mA
Operating Current <420mA
Operating Voltage <5.5V
Beam Divergence Parallel 5º~25º
Beam Divergence Perpendicular 30º~60º
